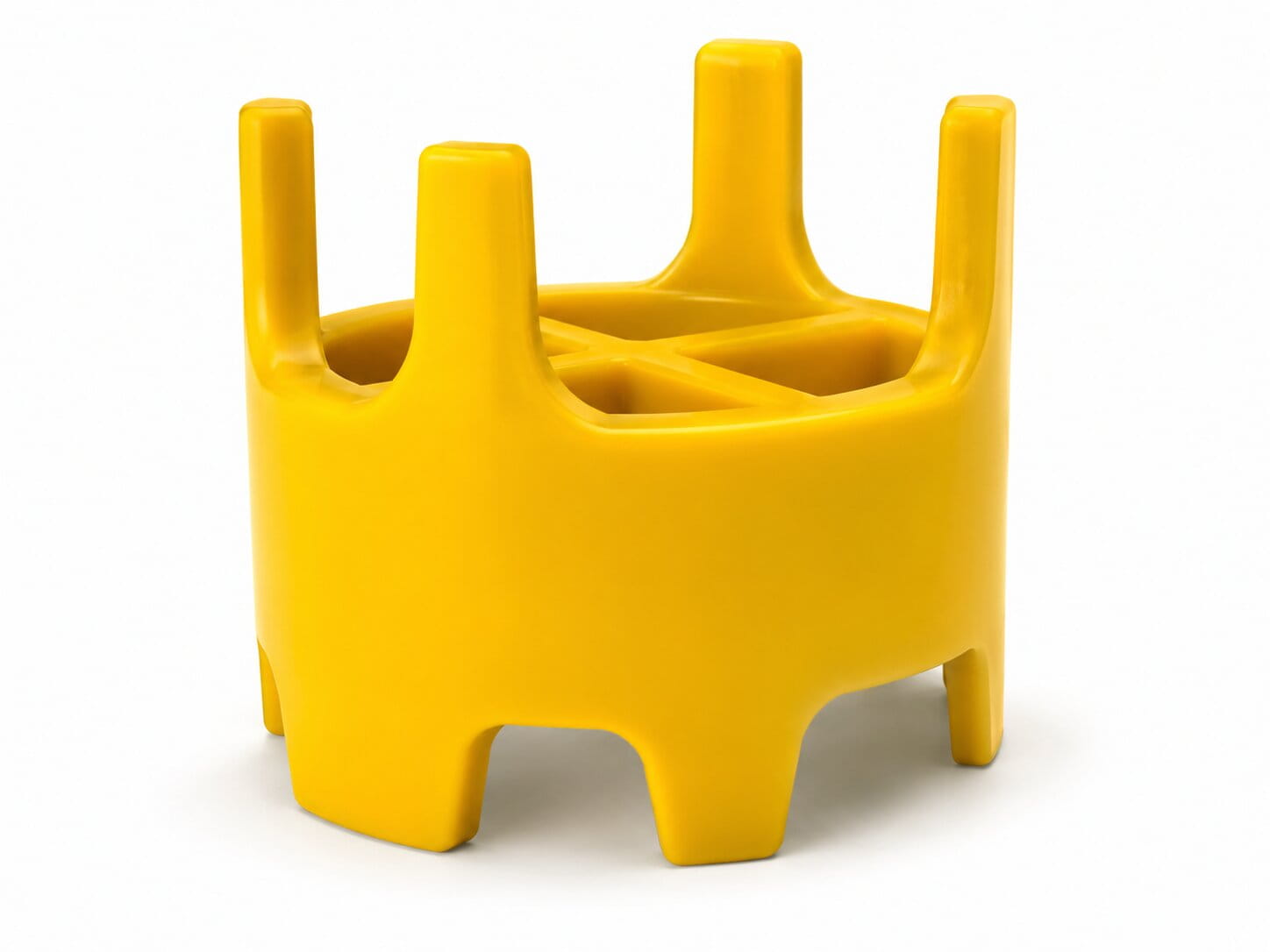

Chair Spacer
Description
- Cylindrical Shape For More Stability And Large Load-bearing Capacity .
- Open Construction To Allow Concrete Flow And Prevent Honey-combs .
- Each Spacer Will Accept A Wide Range Of Rebar Sizes .
|
Reference |
Concrete Cover |
For Steel Diameter |
|
PCH 15/4-18 |
15 mm |
4 -18 mm |
|
PCH 25/4-18 |
25 mm |
4 -18 mm |
|
PCH 30/4-18 |
30 mm |
4 -18 mm |
| PCH 35/4-18 | 35 mm | 4 -18 mm |
| PCH 40/4-28 | 40 mm | 4 -28 mm |
| PCH 50/4-28 | 50 mm | 4 -28 mm |
| PCH 70/4-28 | 70 mm | 4 -28 mm |
