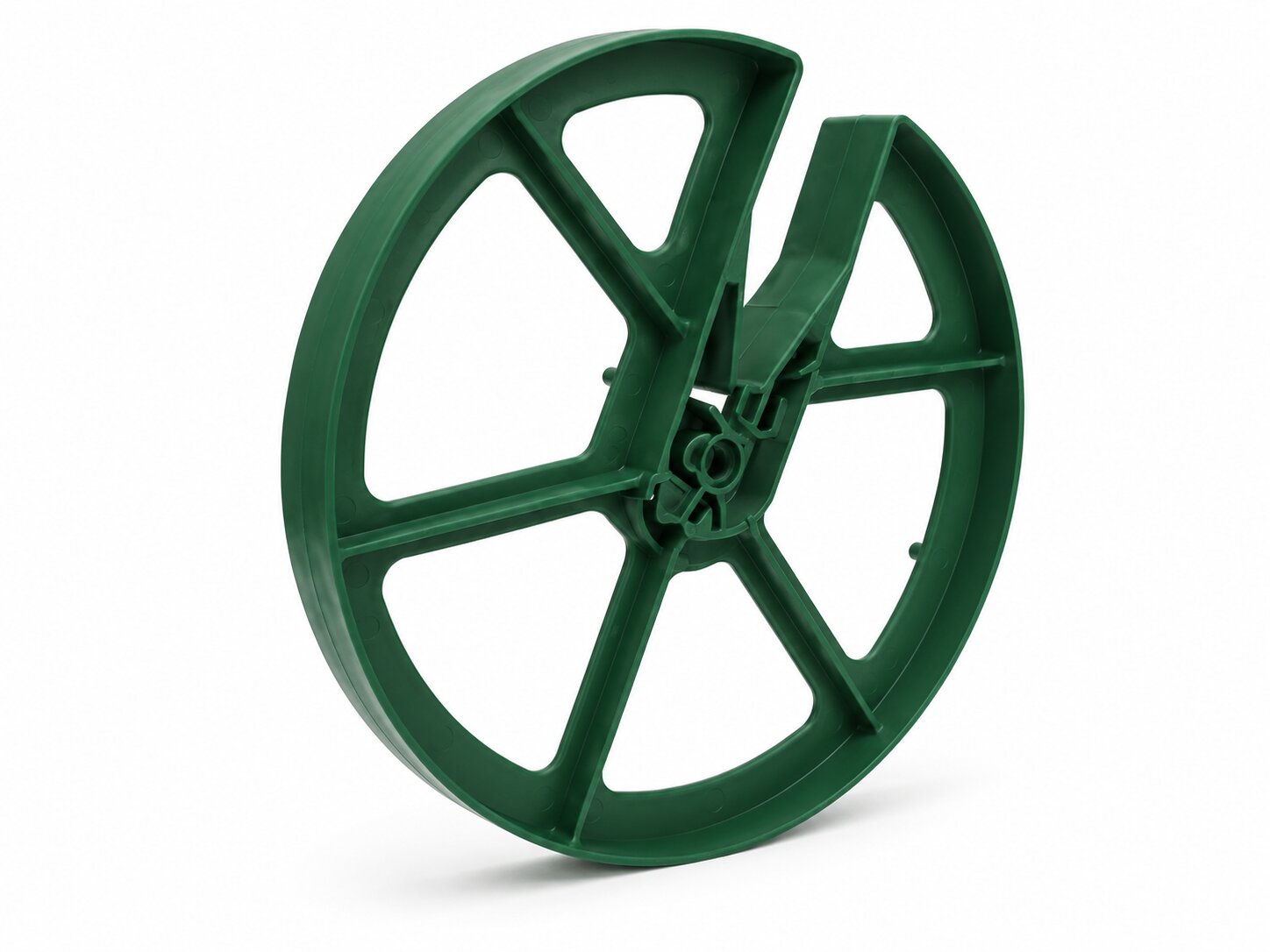

Pile Cage Spacer


A robust clip on pile cage spacer to provide a quick reliable method of spacing for bored piling and diaphragm walling. To be attached to Helical with a maximum diameter of 12mm.



  • Specially designed to give cover to pile cage .
  • Act as a guide wheel when the reinforcement cage is lowered into the ground .
  • Assure concrete covers to current code practices
  • Wide and Smooth surface for better sliding.
  • AL-Safwa Spacers conform To German DIN Standards 1048
  • – Other Sizes can be manufactured .


Code Concrete cover ( C ) For steel Diameter
PS 75 – 12 75 mm Up  to 12 mm
PS 100 – 12 100 mm Up  to 12 mm
