Pipe Spacers Conduits
Description

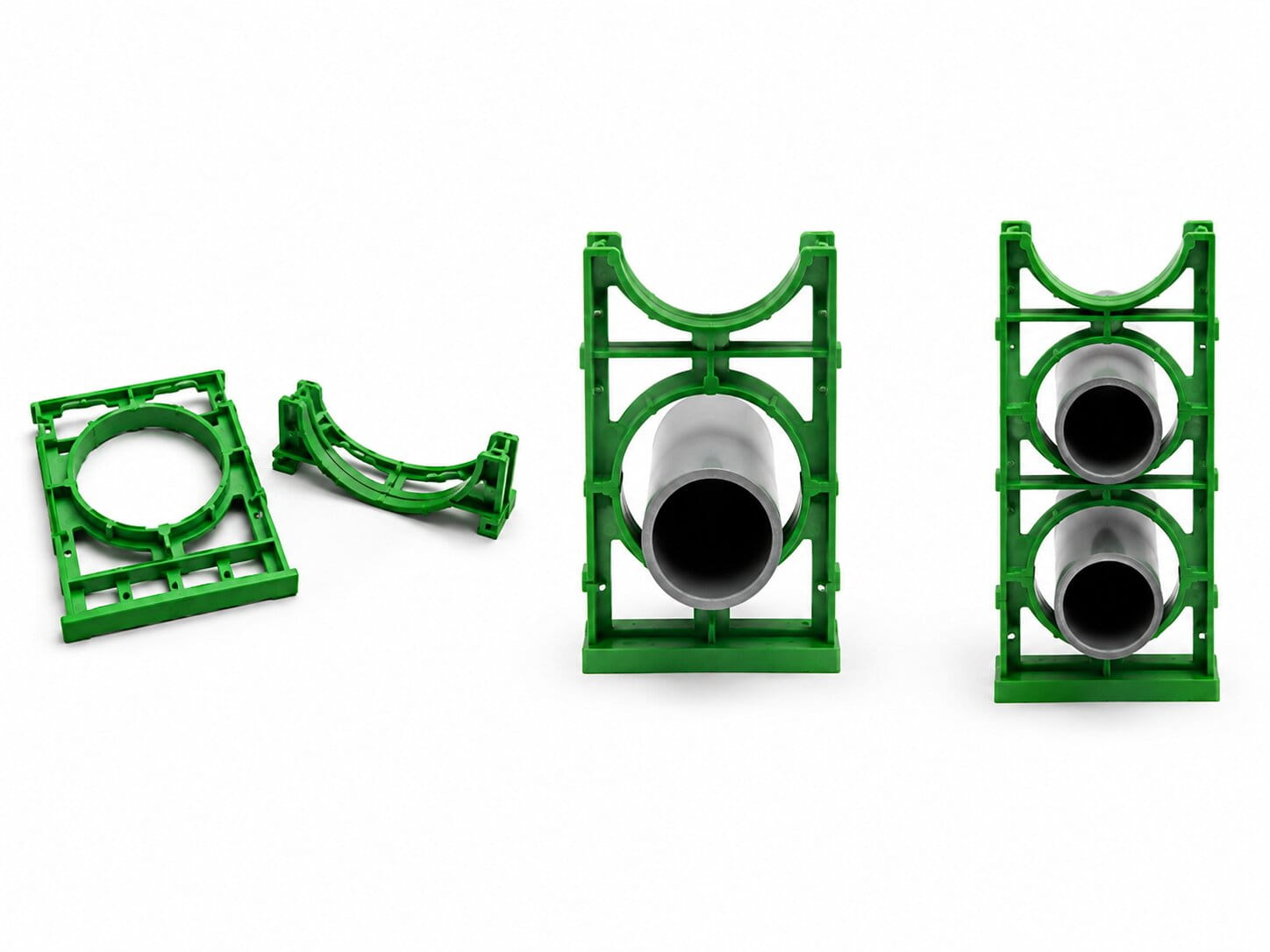

AL-Safwa duct spacers are completely enclosed and locked-in duct banks , They snap together, vertically, slide together horizontally for fast, secure field assembly.
Pipe Spacers Conduits
Pipe Spacers Conduits
- Ensures correct spacing is maintained .
- Banding is not necessary . Only two components, base and intermediate, are needed.
- Spacers lock firmly together, preventing separation.
- Alignment of the duct bank sections is relatively easy with this completely locked-in construction.
- To prevent the top tier from floating during encased burial, it is suggested that a Base spacer be used as a cap.
- A wide base plate provides solid support for heaviest loads.
- Units slide together for horizontal locking .
- Horizontal Spacing can be adjusted using Spacer Blocks for more space between pipes .
Applications
Applications
Used to support power , data , communication and water lines For :
- Residential applications, & service entrances.
- Street and highway underground feeds .
- Transportation systems – subways, bridges, tunnels, airports .
- AL-Safwa Conduits spacer Conform To German DIN Standards 1045 .
Technical Data
Technical Data
|
Code No. |
Center-to-Center Separation |
Pipe Diameter ( D ) |
||
| Horizontal ( H ) | Vertical ( V ) | |||
| PS 32 | 65 mm | 45 mm | 32 mm | |
| PS 50 | 95 mm | 65 mm | 50 mm | |
| PS 75 | 148 mm | 115 mm | 75 mm | |
| PS 110 | 192 mm | 186 mm | 110 mm | |
| PS 160 | 224 mm | 224 mm | 160 mm | |
| PS 200 | 277 mm | 277 mm | 200 mm | |
